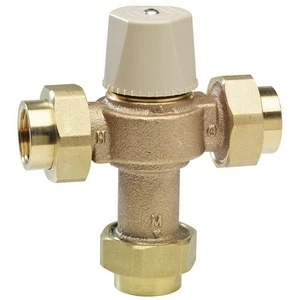

Name: Coupon 👍 Watts Series LFMMV 1/2 in. Thermostatic Mixing Valve 💯
SKU: 3919677
Availability: InStock

Sale!

Original price was: $182.37.Current price is: $92.99.

Lead free brass construction

Thermal actuation technology for precise temperature control

Locking mechanism secures temperature setting

ASSE 1070, ASSE 1069, ASSE 1017 and UPC listed

ADA Compliant	No
Temperature Range	80 to 120 Deg F (27 to 49 Deg C)
Low Pressure	30
Material	Rubber
Material Type	Buna-N, EPDM
Maximum Temperature	200
NSF Certified	Yes
NSF Specifications	NSF 61 Annex G
Type	WLFMMVM1UTD
IAPMO Listed	Yes
UL Listed	No
Valve Body Material	Cast Copper Silicon Alloy
Valve Disc Material	Stainless Steel
Valve Size	1/2 in
Valve Type	Thermostatic Mixing Valve
Weight	1.8
Lead Law Compliant	Yes
High Pressure	150
ANSI Specifications	ANSI 61 Annex G
Color Finish	Rough Bronze
ASSE Standards	ASSE 1017, ASSE 1069, ASSE 1070
Application	Commercial, Institutional, Residential
BAA Compliant	Yes
CSA Certified	Yes
Capacity	13 GPM at 45PSI
Collection	Series LFMMV
Color Finish Category	Bronze Tones
Height	5-7/16 in
Depth	5-41/100 in
End Connection 1	Union Threaded
End Connection 2	Union Threaded
End Connection 3	Female Threaded
End Connections	Union Threaded x Female Threaded
Flow Rate	20 gpm
Width	4-7/8 in
